Meet The Pico & The Sunbrick

Research-Grade Solar Simulation You Can Report On - and Replicate Three Years From Now

G2V tunable LED solar simulators are built by researchers, specified to IEC 60904-9 Class AAA,

and trusted by university labs and national research facilities who can't afford to re-justify infrastructure mid-grant.

Pico Horizontal Mounting
The Pico mounted to standard optical breadboard

Pico Vertical Mounting
Pico with the optional Optical Base
Pico with reference cell
Pico with reference cell

The Pico™

Small Area LED Solar Simulator

Our Pico is a Class AAA small-area solar simulator designed for experts who require:

  • Tune up to 32 channels to explore the spectrum you are interested in.
  • Change from AM0 to AM1.5 without filters or field calibrations.
  • Wide wavelength range up to 1500 nm
sunbrick g1.5-9
Sunbrick with Optical Base
sunbrick g1 - g1.5-10
Current generation Sunbrick (LMNO+ : 400 nm-1500 nm)  against Sunbrick next generation (350nm - 1200 nm)

The Sunbrick™

Larger Area LED Solar Simulator

Our second generation Sunbrick is a Class A+A+A+ large-area solar simulator designed for experts who require:

  • Tune up to 32 channels to explore the spectrum you are interested in.
  • Modular design to scale to any size without losing Class A+A+A+ quality.
  • No bulbs, filters, or manual calibration, saving time and your research budget.
Two-year full warranty, giving you confidence in the quality

Already Know You Need A High Quality Tool?

Tunable Class AAA Quality

IEC 60904-9:2020 better than Class AAA rated across all three performance parameters (spectral match, spatial non-uniformity, temporal instability)
G2V Optics - Pico and Sunbrick Spectral Match

Class A

Spectral Match

The AM1.5G spectral match exceeds the ASTM E927, IEC 60904-9 standard, and exceeds Class A requirements by 5x.

G2V Optics -Pico and Sunbrick Uniformity

Class A
Spatial Uniformity

One sun irradiance area with spatial non-uniformity < 2% for 2.5 cm x 2.5 cm with the Pico or 20 cm x 20 cm with the Sunbrick.

G2V Optics- Long term Stability

Class A

Temporal Stability

Long-term temporal Instability <2% for 1000+ hours and exceeding Class A Short-term Stability of <0.1% for 100 seconds.

Tunable Solar Simulators Designed for How Research Labs Actually Work

Quality Beyond the IEC 60904-9:2020 Standards

The Standards Are A Given; Here Is What Sets Us Apart
VAR Module

Variable Spectrum

Control up to 32 channels for exploring areas of interest

Oython API

Python API

Accelerate your testing and automation steps without sacrificing repeatability

Wifi Connectivity

Network Control

Save time by accessing your device remotely and start your work before you arrive

One Size Doesn't Fit All

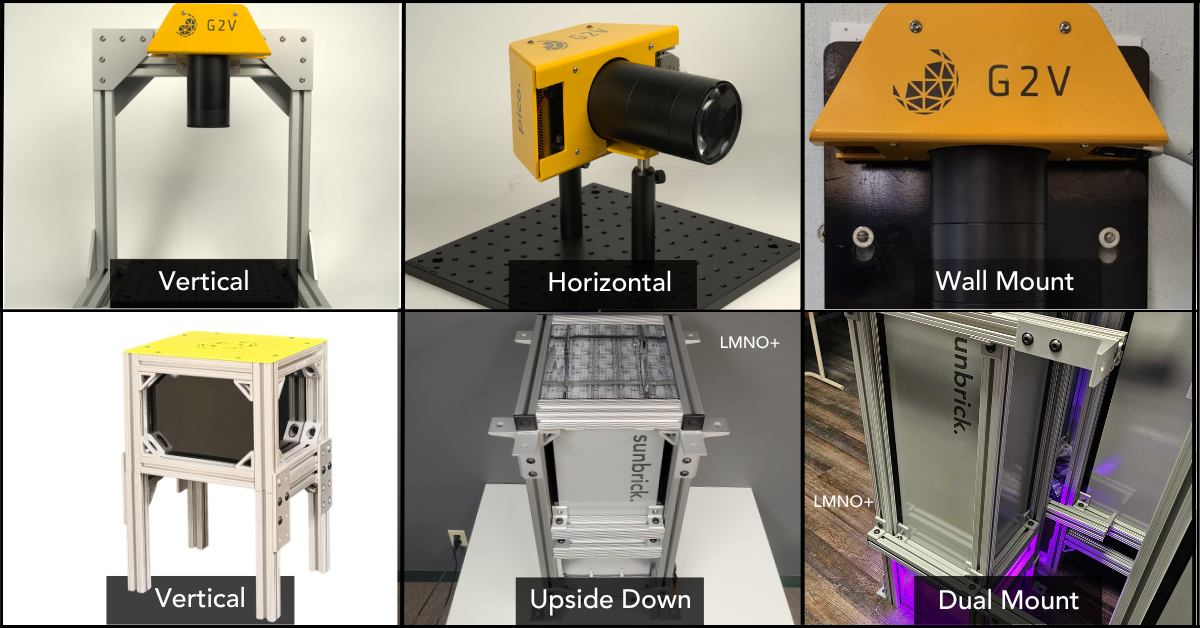

Flexible Mounting Options to Fit Your Lab Space

Not seeing a configuration that works for you? We have a custom engineering division to create the perfect design for your needs.

G2V Optics Pico and Sunbrick G1.5 Mounting Options

About G2V Optics

Solar Simulators Created By Researchers For Researchers
G2V Edmonton Alberta HQ
G2V Optics - Alberta

From G2V's Lab To Yours

G2V Optics was founded in 2015 in Canada by Dr. Mike Taschuk after leaving the University of Alberta . Since then, it has grown to over 30 in-house team members and a network of global resellers.

Now we work with some of the world's most cutting-edge experts, requiring unrivalled quality to change the world of tomorrow today.
